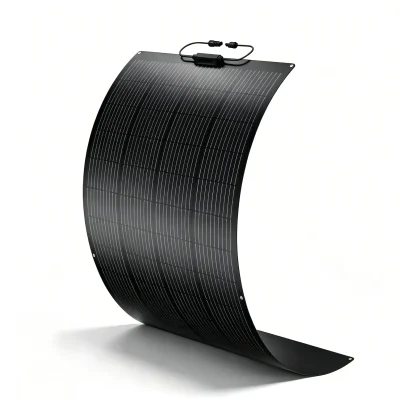

150W Flexible Monocrystalline Solar Panel
- 150W High-Efficiency BC Monocrystalline Cell, Efficiency Over 23.5%
- Ultra-Light 6.17 lbs Flexible Build, Fits All Curved RV & Marine Surfaces
- IP67 Waterproof Pre-Wired MC4 Connectors, Plug-and-Play Setup
- Reinforced Double Fiberglass, Shockproof Without Fragile Glass
- Excellent Low-Light Output, Retain Over 78% Power Under Dim Sunlight
- Wide Temp Adaptability: -40℃ ~ +85℃ for All Climates
- Dual Installation Ways: Self-Adhesive Backing or Pre-Drilled Holes
- Full Certifications UL/CE/FC/RoHS, Ideal for Off-Grid 12V Battery Charging
The 150W Flexible Monocrystalline Solar Panel is a specially designed BC mono solar module that reaches over 23.5% conversion efficiency, maintaining steady power output even under low-light environments. Equipped with an IP67 MC4 connector and featuring a wide -40℃ to +85℃ temperature resistance range, it guarantees long-term stable outdoor operation. Its ultra-light flexible body perfectly fits all curved surfaces, while pre-assembled MC4 connectors enable quick series & parallel expansion. This cost-effective power supply solution is ideal for bulk wholesale projects including RVs, yachts, vans and remote cabins.
Core Product Advantages
- High-Efficiency Power – ≥23.5% BC monocrystalline silicon, 150W, low power attenuation
- IP67 Rating – Full dustproof & waterproof junction box, suitable for all harsh outdoor scenes
- Ultra-Light Build – Only 26.17 lbs, thin 2mm substrate, single-person easy installation
- Flexible Performance – Static bending radius ≥30cm, fits curved RV roofs & boat hulls
- Double Fiberglass Reinforcement – Shatterproof without fragile glass, anti-impact & anti-UV
- Wide Operating Temperature – -40℃ to +85℃, stable performance in extreme cold & heat
- Dual Installation Options – Self-adhesive backing or pre-drilled mounting holes
- Full Global Certifications – UL, CE, FC, RoHS & ISO9001, reliable for bulk wholesale
- Superior Low-Light Output – Over 78% power retention under dim weak sunlight
- Off-Grid 12V Battery Charging – Ideal for RV, marine, trailer & remote cabin power supply
- We also offer OEM/ODM services for bulk orders of this solar panel.
Package Includes
- 1 × 150W Flexible Monocrystalline Solar Panel
- 1 × 60cm MC4 Solar Connection Cable
- 1 × User Manual
Product & Packaging Specs
- Model: GT-DSP-S150
- Special Feature: Flexible
- Material Type: BC Monocrystalline Silicon, Double Fiberglass Composite Film
- Low-light performance: >78% @200W/m²
- Application Class: Class II
- Efficiency: >23.5% Top Grade BC Mono Cells
- Bending radius: ≥30 cm (static)
- Product Dimensions: 43.70 × 27.95 × 0.08 in
- Weight: 6.17 lbs
- Connector Type: MC4
- Operating temperature: -40℃ ~ +85℃
- Maximum System Voltage: 600V DC
- Power Tolerance: ±3%
- Protection class: IP67
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 150 W | Maximum Power Voltage | 24 V |
| Maximum Power Current | 6.25 A | Open-circuit Voltage | 28.5 V |
| Short-circuit Current | 6.35 A | Connector Type | MC4 |
| Operating temperature | -40℃ ~ +85℃ | Maximum System Voltage | 600V DC |
| Product Weight | 6.17 lbs | Product Dimensions | 43.70 × 27.95 × 0.08 in |
Frequently Asked Questions (FAQs)
It perfectly matches 12V storage batteries. The panel has a maximum power voltage of 24V and open-circuit voltage of 28.5V. Paired with a 12V charge controller, it steadily charges 12V batteries for RVs and boats. Multiple panels can also be wired in series for 24V / 48V off-grid systems.
Its minimum static bending radius is ≥30cm, so it fits all curved vehicle tops, boat hulls and irregular roofs. Constructed with double fiberglass instead of fragile rigid glass, it avoids cracking and improves space utilization on curved surfaces.
The pre-installed MC4 connectors carry an IP67 waterproof & dustproof rating. The fiberglass surface is UV-resistant and anti-salt-spray. It performs reliably for long-term outdoor use on yachts or remote cabins without leakage or short circuits on rainy days.
It retains over 78% of its rated output under low irradiance of 200W/m². It can continuously charge batteries at dawn, dusk and on cloudy days, delivering better low-light performance than ordinary flexible panels.
Two installation options are provided: self-adhesive backing for direct sticking, and pre-drilled mounting holes for screw fixing. No metal brackets are required. One person can finish installation quickly, greatly cutting labor costs for refitting.
Each package contains 1 piece of 150W flexible solar panel + 1 English user manual. Waterproof MC4 connectors are pre-wired at the factory, allowing series or parallel connection to expand your power array right out of the box.
It is fully certified with UL, CE, FC, RoHS and ISO9001, Class II safety rating and 600V DC maximum system voltage. It clears customs smoothly for European, American, Australian and other overseas markets, ideal for bulk wholesale.
The operating temperature ranges from -40℃ to +85℃. It maintains stable power output in freezing northern winters and scorching hot RV roof summers without severe power degradation.
