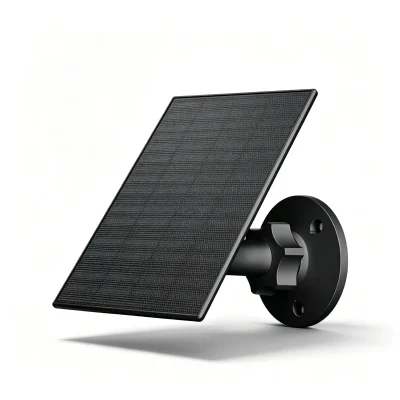

2W Surveillance Dedicated Solar Panel
- 23.5% High-Efficiency Mono Cells, Great Low-Light Performance
- 15°–360° Adjustable Bracket for Optimal Sun Exposure
- Stable 2W 5V Type-C Output, Compatible with Most Security Cameras
- Lightweight 0.27kg Design, Easy Mounting
- IP65 Waterproof & Dustproof, -20℃~50℃ All-Weather Use
- 4m Long Cable for Flexible Wiring
- 2.0–2.6W Power Options, CE/FCC/UL/RoHS Certified
The 2W Surveillance Dedicated Solar Panel is a cost-effective wholesale power supply solution tailor-made for outdoor wireless surveillance cameras and low-power off-grid monitoring devices; it adopts premium monocrystalline silicon cells with over 23.5% photoelectric conversion efficiency to offer standard 2W 5V output with optional power from 2.0W to 2.6W compatible with various camera models, and is fitted with a 15°–360° fully adjustable bracket, IP65 dustproof and waterproof connector, wide -20℃ to 50℃ working temperature range and strict 0~+5% power tolerance for stable year-round outdoor performance, while its ultra-compact 0.27kg lightweight body comes with a 4-meter cable and universal Type-C port for plug-and-play use with most battery-powered wireless cameras, and certified by CE, FCC, UL, RoHS and other international standards, this solar panel accepts bulk customization and stable mass supply, acting as a high-margin matching accessory for wholesalers focusing on home security, outdoor monitoring and garden camera businesses.
Core Product Advantages
- Superior Low-Light Power Generation:Top monocrystalline cells reach over 23.5% efficiency, stable power output even on cloudy days; power tolerance controlled at 0~+5% to protect camera batteries.
- 15°-360° Omni-Directional Adjustable Bracket:Support full rotation and tilt adjustment, easy to aim at sunlight. Fits wall, pole and eave installation to boost daily charging capacity.
- Stable 5V Constant Voltage & Multiple Power Options:Standard 2W 5V safe output matches low-power cameras. Optional 2.0W-2.6W power versions for different device power consumption needs.
- Ultra-Lightweight & Effortless Installation:Only 0.27kg total weight, no heavy burden on mounting surfaces. One-person quick installation cuts labor cost for home and engineering projects.
- All-Weather Outdoor Durability:IP65 waterproof & dustproof connector, works steadily from -20℃ to 50℃. Comes with 4m long cable for flexible long-distance wiring.
- Universal Interface & Full Export Certifications:USB Type-C plug-and-play design compatible with most wireless CCTV cameras. CE, FCC, UL, RoHS certified for smooth export to European & American markets.
Package Includes
- 1 × 2W Surveillance Dedicated Solar Panel
- 1 × 4m Output Cable
- 1 × User Manual
Product & Packaging Specs
- Model: GT-CTV-2
- Special Feature: 15°–360° all-angle adjustable mounting bracket
- Material Type: High-efficiency Monocrystalline Silicon
- Efficiency: >23.5% Top Grade Mono Cells
- Power Range: 2.0W–2.6W (0~+5% power tolerance)
- Operating Temperature: -20℃ ~ +50℃
- Product Dimensions: 134.6 × 46 × 83.8 mm / 5.29×1.81×3.3 in
- Weight: 0.27 kg
- Cable Length: 4m
- Connector: USB Type-C
- Protection Class: IP65
- Certifications: CE, FCC, UL, RoHS
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 2 W (2.0–2.6 W optional) | Maximum Power Voltage (Vmp) | 5.0 V |
| Peak Current (Imp) | 0.40 A | Open-circuit Voltage (Voc) | 6.6 V |
| Short-circuit Current (Isc) | 0.54 A | Connector Type | USB Type-C |
| Operating Temperature | -20℃ ~ +50℃ | Protection Class | IP65 |
| Cell Type | High efficiency mono silicon | Conversion Efficiency | >23.5% |
Frequently Asked Questions (FAQs)
We offer multiple power versions ranging from 2.0W to 2.6W, all with a unified 5V output voltage. The power tolerance is strictly controlled within 0~+5% to ensure stable power supply for surveillance cameras.
Yes. It adopts a universal USB Type-C output port, plug-and-play without extra adapters, compatible with nearly all battery-powered outdoor CCTV cameras on the market. The 4-meter long cable supports flexible long-distance wiring for wall and pole installation.
The bracket supports 15° tilt adjustment and full 360° horizontal rotation. Buyers can freely adjust the panel angle to capture maximum sunlight, perfectly fitting walls, poles, eaves and various installation environments for surveillance projects.
Absolutely. It features IP65 waterproof and dustproof connector, and works reliably in temperatures from -20℃ to 50℃, capable of withstanding rain, dust, extreme cold and high heat for year-round outdoor operation.
Equipped with top-grade monocrystalline cells with over 23.5% conversion efficiency. It delivers far better power generation performance under low-light conditions like cloudy days or shaded areas, effectively solving the problem of insufficient camera power supply.
Yes. GT-CTV-2 is certified with CE, FCC, UL and RoHS, fully compliant with European and North American market standards. We can provide full certification documents for customs clearance and market inspection.
The whole unit only weighs 0.27kg, ultra-lightweight without heavy load pressure on mounting surfaces. Single-person quick installation greatly cuts labor costs for bulk engineering orders and retail home kits.
We support large-volume wholesale orders with stable production capacity. Customization services such as private logo printing, packaging modification and batch power parameter matching are available for B-end distributors and security engineering clients.
