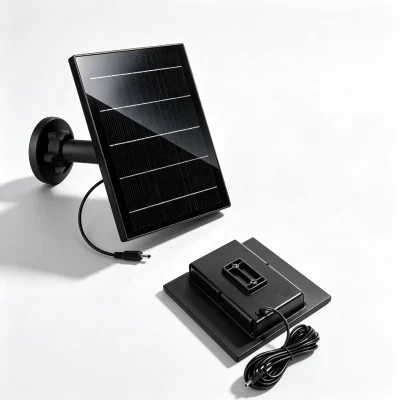

5W Solar Panel for Trail & Security Camera
- 5W High‑efficiency Mono Silicon Solar Panel for Trail Hunting & Security Camera
- Top Grade Mono Cells, Conversion Efficiency Over 23.5%
- 0.57kg Lightweight All‑in‑one Adjustable Bracket Design
- 15°‑360° Full Angle Rotatable & Tiltable Mount Stand
- Built‑in 4m Long Output Cable (TYPE‑C+DC)
- DC 5V Stable Output, Max 1.0A Charging Current
- IP65 Dustproof & Rainproof Outdoor Structure
- Wide ‑25℃ to +60℃ Stable Operating Temperature
- +5%/‑3% Power Tolerance, Reliable Power Supply
- ISO/CE/FCC/UL/RoHS Multi Safety Certifications
- Wear‑resistant ABS Housing & Tempered Glass Surface
This 5W Solar Panel for Trail & Hunting Camera is a stable, cost‑effective power supply solution for trail camera bulk procurement and outdoor wildlife monitoring projects.
Equipped with top‑grade monocrystalline silicon cells delivering over 23.5% conversion efficiency, it provides steady 5V off‑grid charging power for wireless battery‑powered trail cameras under all weather conditions. Its lightweight all‑in‑one bracket, IP65 weatherproof housing, 15°‑360° adjustable mounting structure and 4m extended output cable (TYPE‑C+DC) perfectly fit wildlife camera installers, outdoor gear retailers and remote field monitoring projects.
With wide operating temperature range, strict power tolerance and full global safety certifications, this 5W solar panel maintains consistent long‑term performance for mass outdoor deployment. Custom OEM/ODM service and flexible MOQs are available to match your wholesale business demands.
Equipped with top‑grade monocrystalline silicon cells delivering over 23.5% conversion efficiency, it provides steady 5V off‑grid charging power for wireless battery‑powered trail cameras under all weather conditions. Its lightweight all‑in‑one bracket, IP65 weatherproof housing, 15°‑360° adjustable mounting structure and 4m extended output cable (TYPE‑C+DC) perfectly fit wildlife camera installers, outdoor gear retailers and remote field monitoring projects.
With wide operating temperature range, strict power tolerance and full global safety certifications, this 5W solar panel maintains consistent long‑term performance for mass outdoor deployment. Custom OEM/ODM service and flexible MOQs are available to match your wholesale business demands.
Core Product Advantages
- High‑Efficiency Mono Silicon Cells – Premium single crystal silicon with conversion efficiency over 23.5%, stable power generation even on cloudy low‑light days.
- Full‑Angle Adjustable Mount Bracket – Supports 15°‑360° rotation and tilt, freely align panel toward sunlight for maximum energy harvest.
- Ultra‑Light Compact Build – Total weight only 0.57kg, integrated stand design for quick wall or pole installation without extra accessories.
- Stable 5V Dual Output – Integrated TYPE‑C+DC connector, matched with 4‑meter long cable, max 1.0A charging current compatible with most trail & hunting cameras.
- IP65 Dustproof & Rainproof Housing – Sealed ABS frame and tempered glass surface to resist outdoor rain, dust and daily weather erosion.
- Wide‑Temp Reliable Operation – Runs stably from -25℃ to +60℃, adapts to frigid winter and hot summer outdoor environments.
- Strict Power Output Tolerance – +5%/-3% power tolerance, consistent 5W nominal output to avoid camera power shortage.
- Multi Global Safety Certifications – Passed ISO, CE, FCC, UL, RoHS certifications, fully compliant for cross‑border wholesale sales.
- Anti‑Reverse Circuit Protection – ≥20V maximum reverse voltage resistance, effectively protect camera built‑in batteries from damage.
- We also offer OEM/ODM services bulk wholesale orders of this 5W solar panel.
Package Includes
- 1 × 5W Solar Panel for Trail & Hunting Camera
- 1 × 15°‑360° Adjustable Mounting Bracket
- 1 × 4m Charging Cable (TYPE‑C + DC)
- 1 × Full Set Mounting Screws & Hardware
- 1 × User Manual (English)
Product & Packaging Specs
- Model: GT‑NPTO6‑5W
- Material Type: High‑efficiency Monocrystalline Silicon
- Efficiency: >23.5% Top Grade Mono Cells
- Operating Temperature: -25℃ ~ +60℃
- Product Dimensions: 215 × 42 × 148 mm / 8.46 × 1.65 × 5.83 in
- Weight: 0.57 kg
- Cable Length: 4 m
- Connector: Dual output (TYPE‑C + DC)
- Max Reverse Voltage: ≥20 V
- Protection Class: IP65 waterproof & dustproof
- Certifications: ISO, CE, FCC, UL, RoHS
- Special Feature: All‑in‑one adjustable vertical stand, 15°‑360° full angle rotation & tilt
- Low‑light performance: Stable power generation under cloudy weak light environments
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 5W | Maximum Power Voltage | 5.0V |
| Peak current (Imp) | 1.00A | Open-circuit voltage (Voc) | 6.6V |
| Short-circuit Current(Isc) | 1.35A | Connector Type | Dual‑output (TYPE‑C+DC), 4m cable |
| Output Ports | Dual‑output (TYPE‑C+DC), 4m cable | Max Reverse Voltage | ≥20V |
| Cell Type | High efficiency mono silicon | Operating Temp | -25℃ ~ +60℃ |
Frequently Asked Questions (FAQs)
Nominal output power is 5W. Adopting high‑efficiency monocrystalline silicon cells over 23.5%, it can still generate stable power under cloudy and low‑light outdoor conditions for trail & hunting cameras.
It comes with TYPE‑C + DC dual‑output ports, matched with a 4‑meter long cable. It is compatible with most mainstream trail cameras that support 5V DC input.
Our panels are certified with ISO, CE, FCC, UL and RoHS. All documents are available for your customs clearance and resale in EU and North‑American markets.
Yes. Built‑in anti‑reverse circuit protection with ≥20V max reverse‑voltage resistance. It effectively protects cameras’ internal batteries from reverse‑current damage.
Stable operation ranges from ‑25℃ to +60℃. With IP65 dust‑proof and rain‑proof housing, it adapts to cold winter, hot summer, rain and dust for field monitoring.
Yes, OEM / ODM is supported for large‑volume purchases. We support custom logo printing, customized cable length, packaging solution and parameter tuning according to your requirements.
Equipped with integrated 15°‑360° full‑angle adjustable bracket, together with complete mounting screw kits included in package. No extra accessories needed for wall‑mount or pole‑mount installation.
Flexible MOQ for wholesale customers. Standard lead‑time depends on order quantity. Please send us inquiry to get detailed quotation and production schedule.
