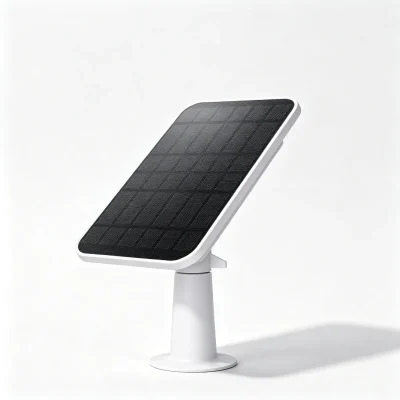

7.5W Solar Panel for Security Camera
- 7.5W High-efficiency Mono Silicon Solar Panel for CCTV Camera
- Top Grade Mono Cells, Conversion Efficiency Over 23.5%
- 0.58kg Lightweight All-in-one Adjustable Bracket Design
- 15°~360° Full Angle Rotatable & Tiltable Mount Stand
- Built-in 4m Long USB Type-C Output Cable
- DC 5V Stable Output, Max 1.5A Charging Current
- IP65 Dustproof & Rainproof Outdoor Structure
- Wide -25℃ to +60℃ Stable Operating Temperature
- ±5%/-3% Power Tolerance, Reliable Power Supply
- ISO/CE/FCC/UL/RoHS/PSE Multi Safety Certifications
- Wear-resistant White ABS Housing & Tempered Glass Surface
This 7.5W dedicated monitoring solar panel is a stable, cost-effective power supply solution for security camera bulk procurement and outdoor surveillance projects. Equipped with top-grade monocrystalline silicon cells delivering over 23.5% conversion efficiency, it provides steady 5V off-grid charging power for wireless battery cameras under all weather conditions. Its lightweight all-in-one bracket, IP65 weatherproof housing, 360° adjustable mounting structure and 4m extended Type-C cable perfectly fit security system installers, smart home retailers and community monitoring projects. With wide operating temperature range, strict power tolerance and full global safety certifications, it maintains consistent long-term performance for mass outdoor deployment. Custom OEM/ODM service and flexible MOQs are available to match your wholesale business demands.
Core Product Advantages
- High-Efficiency Mono Silicon Cells – Premium single crystal silicon with conversion efficiency over 23.5%, stable power generation even on cloudy low-light days.
- Full-Angle Adjustable Mount Bracket – Supports 15°–360° rotation and tilt, freely align panel toward sunlight for maximum energy harvest.
- Ultra-Light Compact Build – Total weight only 0.58kg, integrated stand design for quick wall or pole installation without extra accessories.
- Stable 5V Type-C Output – Standard USB-C port with 4-meter long cable, max 1.5A charging current compatible with most wireless CCTV cameras.
- IP65 Dustproof & Rainproof Housing – Sealed ABS frame and tempered glass surface to resist outdoor rain, dust and daily weather erosion.
- Wide-Temp Reliable Operation – Runs stably from -25℃ to +60℃, adapts to frigid winter and hot summer outdoor environments.
- Strict Power Output Tolerance – ±5%/-3% power tolerance, consistent 7.5W nominal output to avoid camera power shortage.
- Multi Global Safety Certifications – Passed ISO, CE, FCC, UL, RoHS and PSE certifications, fully compliant for cross-border wholesale sales.
- Anti-Reverse Circuit Protection – ≥20V maximum reverse voltage resistance, effectively protect camera built-in batteries from damage.
- We also offer OEM/ODM services for bulk orders of this solar panel.
Package Includes
- 1 × 7.5W Solar Panel for Security Camera
- 1 × 360° Adjustable Mounting Bracket
- 1 × 4m Charging Cable (Micro USB + Type-C)
- 1 × Full Set Mounting Screws & Hardware
- 1 × User Manual (English)
Product & Packaging Specs
- Model: GT-CTV-7.5
- Material Type: High-efficiency Monocrystalline Silicon
- Efficiency: >23.5% Top Grade Mono Cells
- Operating Temperature: -25℃ ~ +60℃
- Product Dimensions: 186 × 25.5 × 115 mm / 7.32 × 1 × 4.53 in
- Weight: 0.58 kg
- Cable Length: 4 m
- Connector: Fixed USB Type-C output
- Max Reverse Voltage: ≥20 V
- Protection Class: IP65 waterproof & dustproof
- Certifications: ISO, CE, FCC, UL, RoHS, PSE
- Special Feature: All-in-one adjustable vertical stand, 15°–360° full angle rotation & tilt
- Low-light performance: Stable power generation under cloudy weak light environments
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 7.5W | Maximum Power Voltage | 5.0V |
| Peak current (Imp) | 1.50A | Open-circuit voltage (Voc) | 6.6V |
| Short-circuit Current(Isc) | 2.03A | Connector Type | Fixed USB Type-C, 4m cable |
| Output Ports | Fixed USB Type-C, 4m cable | Max Reverse Voltage | ≥20V |
| Cell Type | High efficiency mono silicon | Operating Temp | -25℃ ~ +60℃ |
Frequently Asked Questions (FAQs)
It features standard 5V Type-C output, compatible with most 5V rechargeable battery surveillance cameras on the market. We can adjust output parameters for special camera models via OEM customization.
Stock standard models support flexible small MOQ; customized OEM orders with logo/packaging printing have negotiable minimum quantities, contact our sales team for detailed terms.
The standard cable length is 4 meters. Custom cable lengths from 1m to 10m are available for project bulk orders without extra surcharge for large quantity.
Yes, the integrated stand supports 15°–360° rotation and tilt, flexible for wall, pole and outdoor ceiling installation to align sunlight in all scenarios.
IP65 dustproof & rainproof structure works steadily from -25℃ to +60℃, resistant to daily rain, dust and snow; it is not suitable for long-term submersion in water.
It is fully certified with ISO, CE, FCC, UL, RoHS and PSE, meeting inspection standards for EU, US, Japan and most global markets.
Adopted top-grade monocrystalline silicon cells with over 23.5% conversion efficiency, it maintains continuous low-power charging under cloudy weather to prevent camera power outage.
Equipped with anti-reverse circuit design, maximum reverse voltage resistance ≥20V, effectively prevent battery damage caused by reverse current at night.
